Turbocharger Failure in Cummins Engines: What You Need to Know

If you’re running a Cummins-powered rig, you know firsthand the performance and torque these engines deliver. But all that power won’t get you anywhere without the turbocharger pulling its weight. When the turbocharger in your Cummins engine fails, you feel it. Immediately. It comes with a loss of control, black smoke, and whistling noises, making you feel like your truck has suddenly aged a decade overnight.

So what causes turbocharger failure in Cummins engines, and more importantly, how can you spot the signs before you're stuck on the side of I-84 outside Payette?

What Does a Turbocharger Do?

To start with, a little engine parts 101, let’s recap what a turbocharger actually does.

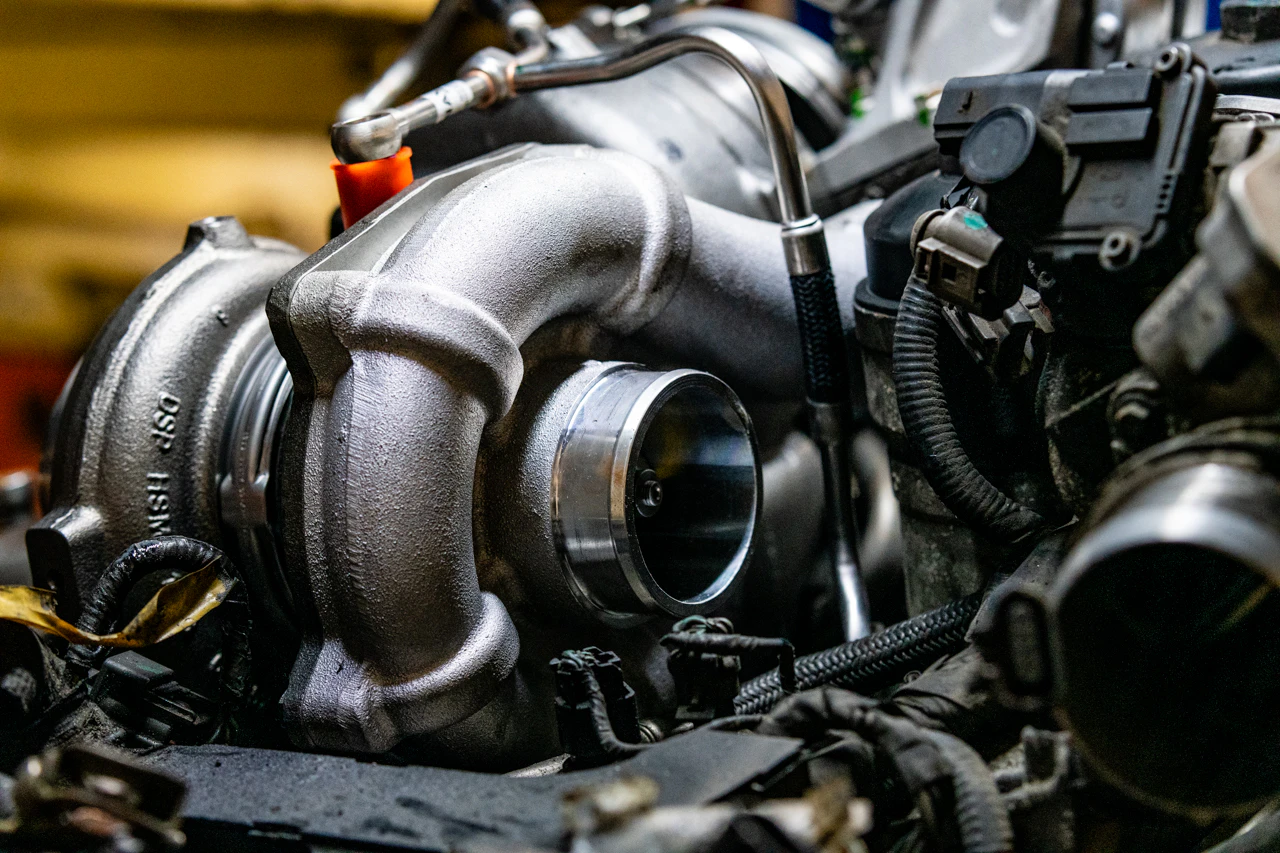

A big engine like a Cummins X15 turbo makes your engine run better and more efficiently by forcing more compressed air into the combustion chamber. But how? It repurposes your rig’s exhaust gas to compress air from an intake. More air = more oxygen. More oxygen = more powerful combustion. That’s how your Cummins gets its grunt.

The whole turbocharger componentry is a high-speed, high-temperature part that lives in a very harsh environment. And that means it’s susceptible to damage if anything in the system is even slightly off.

Common Signs of Turbo Failure

The thing about turbochargers is that they are designed to withstand a lot of pressure. They work hard, and they rarely fail without warning first. As a driver or a fleet manager, you need to know what to look for so you don’t get caught roadside with a rig that won’t go.

If you’re unsure of what to look out for when your turbo acts up, here’s a quick list:

1. Loss of Power

A turbo means more power, so when your rig suddenly feels like it’s towing a mountain instead of a trailer, don’t ignore it. It’s an indicator that the turbo could be on its last legs. A failing turbo won't compress air efficiently, leading to sluggish acceleration and poor fuel economy.

2. Whining or Whistling Sounds

A high-pitched whistle or screeching noise when accelerating is usually the sound of a turbo with internal damage. Think of it like a jet engine gasping for air.

3. Excessive Exhaust Smoke

Black smoke is never a good sign. If your engine is burning too much fuel, often because there’s not enough air, it's a classic turbo issue. Blue or white smoke? That could be oil leaking into the intake, which usually means a turbo seal failure.

4. Check Engine Light

Your ECM (Engine Control Module) keeps a close eye on turbo performance. If it detects something off, it'll throw an error code. Don’t ignore it! This is especially important if you’re running a modern Cummins engine, such as the ISX or X15.

What Causes Turbo Failure in Cummins Engines?

So turbos don’t just stop working. However, understanding why they might occur can help alleviate some of the issues before they cause problems. The Cummins turbocharger is built to last, but like any mechanical component, it’s not bulletproof. Let’s take a look at the heavy-hitters when it comes to turbo failure causes.

1. Oil Contamination or Starvation

Oil is what keeps your turbo running strong. Since the turbine shaft spins at over 100,000 RPM, oil keeps it lubricated. Without clean, high-pressure oil, your turbo will wear out faster than you can say “downtime.” Dirty oil or low oil pressure is the leading cause of turbocharger failure. Always keep your oil clean, topped up, and changed on schedule.

2. Foreign Object Damage

Foreign objects are a death sentence for your turbo. If a bolt, gasket piece, or even dust gets into the intake or exhaust stream, it can rip through the compressor or turbine blades like a buzzsaw. This is especially risky after engine rebuilds or air filter changes.

3. Over-speeding the Turbo

Cummins engines that have been improperly tuned or modified can produce more boost than the turbo was designed to handle. When that happens, the turbo spins beyond safe limits and eventually explodes—literally.

4. Exhaust Restrictions

Suppose you’re running a clogged DPF (Diesel Particulate Filter) or EGR system. In that case, you can see backpressure buildup, forcing exhaust gases back into the turbo and causing heat damage and pressure imbalance.

5. Leaking Intercoolers or Piping

If your charge air cooler (CAC) or piping develops a leak, the compressed air escapes before it gets to the engine. The turbo then overcompensates to maintain pressure, which puts stress on the unit and leads to failure over time.

Turbocharger Failure in Cummins ISX and X15 Engines

When it comes to Cummins engines, some models have their own quirks:

• Cummins ISX15 turbos often experience failures of the variable geometry turbo (VGT) actuator, which can lead to erratic boost control and engine derate.


• X15 engines, while improved, still need regular inspection of the exhaust manifold gaskets, oil feed lines, and electronic turbo actuator calibrations.



And this isn't even taking into account the problems that can arise when aftertreatment systems, such as the SCR and DPF, are involved. These systems indirectly affect turbo performance due to backpressure and regeneration cycles that go wrong.

How to Prevent Turbo Failure

Good news, turbo failure is often preventable. You just need to pay close attention to what your truck is telling you, and make sure to give it proper care.

Keep Up With Oil Changes

When it comes preventive maintenance, keep up with regular oil changes and use the oil recommended by the manufacturer. More importantly, change it like your engine's life depends on it—because it does.

Inspect for Leaks and Cracks

Check for oil leaks, CAC cracks, or exhaust leaks during regular service intervals.

Let It Cool Down

Don’t shut the engine off immediately after a long haul. Best practices are to allow the turbo to “spool down,” which helps prevent heat soak and oil coking within the turbo.

Stick to OEM or Trusted Tunes

If you're going to tune your Cummins, don’t cheap out. Use reputable ECM tuning services that don’t push your turbo past its safe boost threshold.

When to Replace Your Turbo (and When to Rebuild)

Here’s the million-dollar question: replace or rebuild? When it comes down to making the choice to rebuild or replace, you will want to consider cost and longevity.

• Rebuilding is cheaper upfront but only worth it if the damage is minor and the housing is intact.


• Replacing is the safest bet when there’s shaft play, cracked housings, or catastrophic failure.



If you're in Payette, Idaho, and you're unsure which route to take, have a certified tech at Revolution Truck Services inspect your turbo. A trained eye can spot problems that might save you from a blown turbo and a blown budget.

Turbocharger failure in Cummins engines is no small issue. But armed with the right knowledge and a good wrench, you can catch the warning signs early and take action before things escalate. Pay attention to performance changes, stay on top of maintenance, and don’t ignore those little whines and whistles.

Your turbo might just be trying to tell you something.
